Kavitsu Transmissions is a leading manufacturer and supplier of heavy-duty Worm Gearboxes in India. Engineered for maximum torque output in compact spaces, our worm gearbox units are the ideal solution for applications requiring high-ratio speed reduction, smooth operation, and reliable load-holding capabilities.
This right-angle power transmission system is your go-to choice for dependable, low-speed, high-torque industrial machinery.
Need a Reliable Power Transmission Solution?
Get a Technical Consultation Today
Industrial Worm Gearbox Solutions

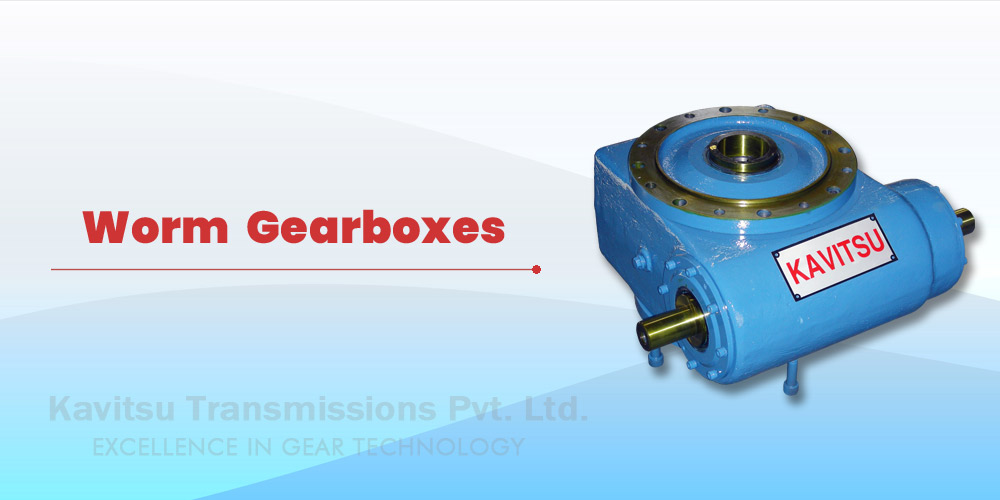

⚙️ Kavitsu Worm Gearbox: High-Torque, Right-Angle Power Transmission
A Worm Gearbox is a type of speed reducer designed for applications that require high torque output in a compact and efficient mechanism. Kavitsu’s Worm Gearboxes are engineered using precision-crafted worm and worm wheel combinations, ensuring smooth power transmission, minimal noise, and long operational life. These gearboxes are widely used in industrial machinery, conveyor systems, automation equipment, and heavy-load operations.
Why Choose a Kavitsu Worm Gearbox? (Targeting Features & Benefits)
Our commitment to precision engineering ensures our worm gearbox provides distinct operational advantages over standard reduction units.
| Feature | Technical Advantage | Direct Benefit to You |
| High Ratio, Compact Design | Achieves reduction ratios from 5:1 up to 100:1 in a single stage. | Delivers massive torque multiplication while saving crucial space on your production floor. |
| Inherent Self-Locking | Due to the sliding contact angle, the worm wheel cannot drive the worm back (in most ratios). | Enhanced Safety for vertical loads (lifts, hoists) by preventing back-driving when the motor is stopped. |
| Quiet & Smooth Operation | The continuous sliding meshing of the worm and wheel minimizes vibration. | Ideal for noise-sensitive environments like food processing, packaging, and clean rooms. |
| Durable Material Pairing | Worm shafts made of case-hardened alloy steel paired with bronze/brass worm wheels. | Extends operational lifespan and maintains high performance under continuous heavy load. |
| 90o> Angle Configuration | Allows for efficient and flexible power transmission between non-intersecting, perpendicular shafts. | Simplifies machine design and integration into tight or complex assemblies. |
High-Efficiency Ratios or Compact Designs - We Build to Your Specs.
Worm Gearbox Applications: Where Reliability is Non-Negotiable
A Kavitsu Worm Gearbox excels in sectors where high output torque and consistent load holding are paramount.
- • Material Handling: Critical for Conveyor Belts, Cranes, Hoists, and Lifts - relying on the self-locking feature for safety and control.
- • Packaging Machinery: Provides the low-speed precision needed for wrapping, filling, and sealing processes.
- • Industrial Mixers & Agitators: Handles the immense torque required to rotate heavy, viscous materials in the chemical and food industries.
- • Automated Gates & Positioning Systems: Ensures precision movement and maintains a locked position when power is off.
- • Textile & Printing Machinery: Used for reliable speed reduction and smooth, consistent drive.
Technical Specifications & Customization (Commercial Intent)
We don't just supply gearboxes; we engineer solutions. Our Worm gearboxes are available in both standard and specialized configurations to meet the demanding requirements of your industry.
Core Specifications (Example Ranges - Adapt to your actual product specs) :
- • Centre Distances: Available from 17 mm up to 210 mm (Custom sizes available upon request).
- • Ratio Range: Standard ratios up to 70:1 (Higher ratios achievable with double reduction stages).
- • Housing Options: High-strength Cast Iron for heavy-duty industrial environments and Aluminum Alloy for weight-sensitive applications.
- • Mounting: Designed for universal mounting, including Foot Mount, Flange Mount, and Shaft Mount with a torque arm.
Your Solution for the Perfect Worm Gearbox
If your application demands extreme torque, a tight-space fit, and an essential self-locking safety feature, a Kavitsu Worm Gearbox is the answer.
Partner with India's Trusted Gearbox Exporter.
Whether for hoists, conveyors, or mixers, Kavitsu delivers the torque you need.
Worm Gearbox Product FAQ
What is the standard delivery or lead time for industrial worm gearboxes?
Standard sizes and catalog models of our worm gearboxes are typically ready for immediate dispatch or have a short lead time of 2 to 3 days. For heavy-duty industrial configurations or highly customized shaft dimensions, lead times depend entirely on the design specifications and manufacturing requirements.
What customization options do you provide for worm gearboxes?
We offer comprehensive technical customization to match your specific machinery demands, including:
- Custom gear ratios and input/output shaft extensions.
- Specialized housing materials (such as high-grade cast iron or lightweight aluminum).
- Customized mounting brackets, flanges, and dual-shaft options.
- High-temperature or heavy-duty industrial seals for harsh operating environments.
What gear reduction ratios are available in your worm gearbox product catalog?
Our standard single-stage worm gearboxes support standard speed reduction ratios ranging from 5:1 up to 70:1. For complex high-torque applications requiring deeper reduction, we manufacture multi-stage or double-reduction paired gear assemblies that can achieve ratios much higher than 4000:1.
Are these worm gearboxes suitable for continuous 24/7 industrial operations?
Yes, our industrial gearboxes are engineered for continuous duty cycles. Because worm gear units generate inherent heat due to sliding friction, we ensure our units feature high-efficiency heat-dissipating cooling fins, heavy-duty synthetic lubrication compatibility, and rugged cast-iron casings to maintain performance under steady load profiles.
How do I choose the right worm gearbox size and frame for my application?
To select the ideal model, you need to determine your required output torque, input motor horsepower (HP) or kilowatts (kW), desired reduction ratio, overhung load capacity, and mounting configuration. Our technical engineering team is available to run full load calculations and assist you in selecting the correct frame size.
Related Products:
Helical Gearbox | Planetary Gearbox
We specialize in Production, Distribution & Global Shipment of Worm Gearbox, Worm Gearboxes From Satara, India.
